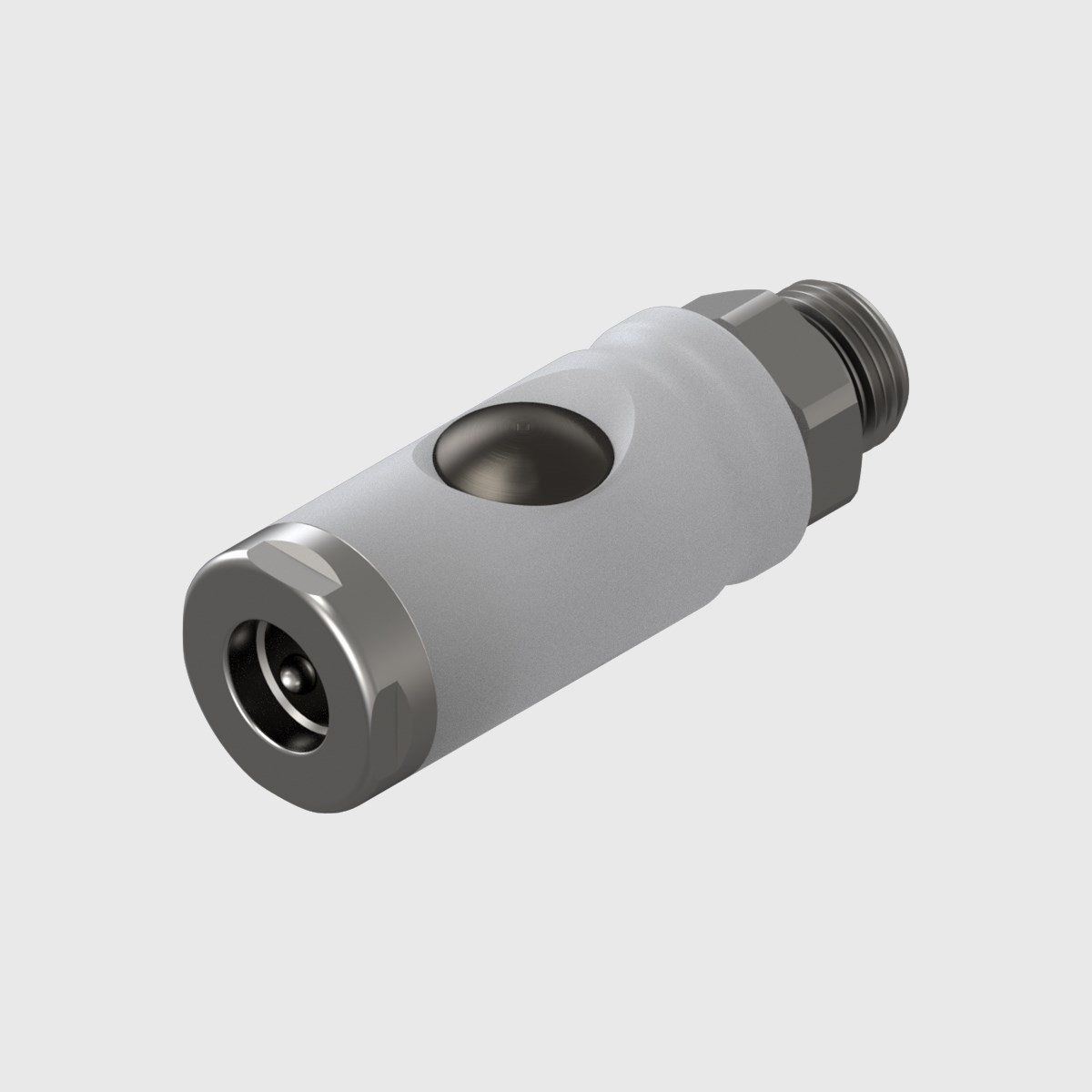

European Safety Coupling - 1/2" bsp Male

European Safety Coupling - 1/2" bsp Male

0B161 00 003

European Safety Coupling - 1/2" bsp Male

typical lead time 2 - 4 weeks

Order will not be fulfilled immediately due to stock availability, payment taken when order placed. Contact us for further information on expedited delivery.

European Safety Coupling - 1/2" bsp Male
£36.69+ VAT
Request A Quote
BIM Files
Add To Wishlist
X

Bulk price quote request

Product Details

0B161 00 003

European Safety Coupling - 1/2" bsp Male

Personal Details

Please enter a CompanyPlease enter a valid Company, the maximum length is 50 characters

Please select a valid Title, the maximum length is 12 characters.

Please enter a First NamePlease enter a valid First Name, the maximum length is 50 characters.

Please enter a Last NamePlease enter a valid Last Name, the maximum length is 50 characters.

Contact Details

Please select a valid Contact Number, the maximum length is 30 charactersPlease enter a valid Contact Number consisting only of the following characters & spaces ( ) + 0 1 2 3 4 5 6 7 8 9

Please enter a valid Email AddressPlease enter a valid Email AddressThe Email Address entered is already registered, please sign in with the Email Address or enter a different one

Please enter a QuantityPlease enter a valid number between 10 and 999999

Please confirm you are not a robot.
We have been unable to verify your identity, please confirm you are not a robot.

Description European Safety Coupling - 1/2" bsp Male

Extended Description European Safety Coupling - 1/2" bsp Male

Download Flyer Click to download the Accessories Datasheet

Flow Rate 2000 Nl/min at 6 bar

Item Weight 0.085

Pressure (Bar) 0 Bar (0 Mpa) 15 bar (1.5 Mpa)

Working Temperature Range -20 °C to 80 °C

Other Technical Data This type of connection fitting is designed for quick and secure attachment or detachment of hoses and pneumatic tools such as impact wrenches, drills, and sanders. The coupling line is ideal for applications where frequent connection and disconnection are required, helping to save time and improve efficiency. The 0B160 socket features a push-button mechanism that safely releases the locking system by first depressurizing the air. Unlike the previous series, this model requires a double press to release the plug, which helps prevent accidental or unintended disconnection—enhancing safety for both workers and the working environment. The coupling body is made of aluminum, with a steel button and springs. The seals are NBR, and the threaded part is made of nickel-plated brass. With a nominal diameter of 7.8 mm, it allows a maximum flow rate of 2000 Nl/min at 6 bar with free exhaust.

Disclaimer: All information has been carefully collated and presented, however, Infinity cannot accept responsibility for incorrect or misprinted information
